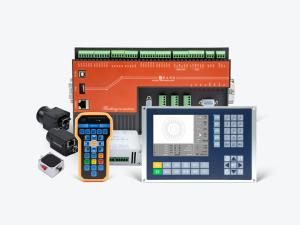

RDV6563FG-NET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines

Name: RDV6563FGNET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines
Brand: RUIDA
Price: 1 USD

Quality RDV6563FG-NET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines for sale

Brand Name : RUIDA

Model Number : RDV6563FG-NET

Certification : CE FCC ROHS

Place of Origin : Mainland China

MOQ : 50

Price : Negotiable - Inquire Within

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/day

Delivery Time : 5-8 work days

Packaging Details : Carton Packing

Brand : RUIDA

Axis : 6

Laser source : Fiber laser/CO2 laser/RF laser

Laser channel : 1

Height control : loop-locked height control

Panel : 5.7'' color screen+keys

Encryption : Support

Cutting function : Mark point vision positioning metal and non-metal mixed cutting

Onboard clock : Support

Software : RDCutist, support punching, lead, bridge and micro connection

Contact Now

RUIDA RDV6563FG-NET Fiber Laser Cutting Controller For Mark Point Vision Cutting And Engraving Machines

Discroption of RDV6563FG-NET:

The RDV6563FG-NET by Ruida, is a Mark point vision-guided, standalone fiber cutting control system. It employs capacitive sensing technology for the Z-axis height control, which includes a high-performance amplifier and is designed to counteract interference, significantly improving the motion and response speed of the height control. When used in conjunction with RDCutist software, the system offers sophisticated cutting functions like Frog, Flight cutting, and No rise.

Product Function:

1.Support multistage pierce, step pierce and pulse pierce
2.Support frog, fly cutting and no rise functions
3.Support manual and continuous switch and speed key switch
4.Support metal processing technic, such as die-cutting and pre-piercing
5.Support Mark point vision positioning and cutting
6.Support the metal and non-metal mixed cutting for fiber and CO2 laser

RDV6563FG-NET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.

RDV6563FG-NET Controller For Fiber Laser Mark Point Vision Cutting And Engraving Machines

Technical Parameters:

Parameters	RDV6563FG-LITE
Laser source	Fiber laser/CO2 laser/RF laser
Height control	loop-locked height control
Axis	6
Laser channel	1
Communication	Ethernet, USB and WIFI (optional)
Panel	5.7” color screen+keys
Feeding	Support automatic feeding
Encryption	Support
Onboard clock	Support
Firmware	Remote upgrade of panel and mainboard program
Cutting function	Mark point vision positioning metal and non-metal mixed cutting
Engraving	Plane engraving
Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available
Software	RDCutist, support punching, lead, bridge and micro connection
Language	Simplified Chinese, traditional Chinese and English
Size	Panel: L235W155H33.5mm Mainboard:L308W150H78mm
Accessories	RD-APP, RD-WIFI, Automatic Typesetting Nesting Software

Why Choose the RDV6563FG-NET:

1.Standalone Mark Point Vision
2.Enhanced Height Control
3.Advanced Cutting Functions
4.Reliable Performance

Application:
Suitable for metal and non-metal cutting in sheet metal, auto parts, handicrafts and utensils industries.
